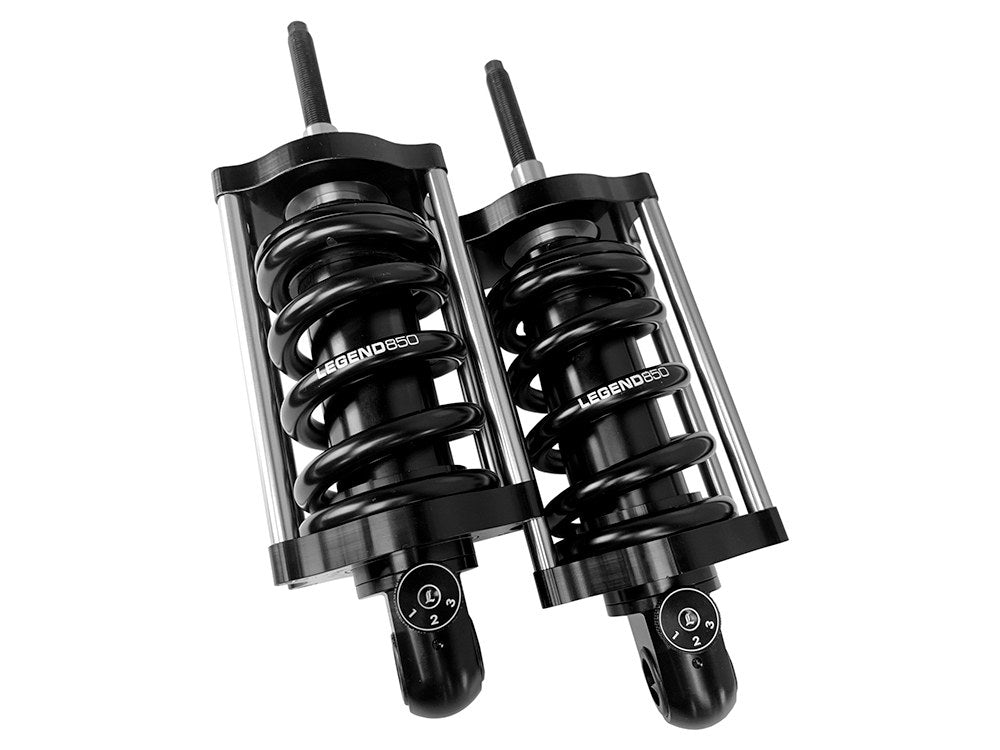

REVO-A Series, Adjustable Rear Shock Absorbers – Black. Fits Softail 2000-2017.

Product Details









Features & Benefits:-* REVO coils improve ride quality, control, & resistance to bottoming-out* Minimal preload adjustments when changing riders, weights or loads* Billet Aluminium 45mm smooth bore twin tube design with 25mm piston reacts quickly for improved fluid flow* Sandvik Deflective Disc valved damping self-adjusts to frequency & ensures controlled performance* Low friction sealing system and PTFE based sliding bearings improve performance & feel* External knobs provide 3 adjustments for fine-tuning of rebound* Stainless Steel tie bar design and construction* Available in standard length shocks only for optimum ride quality and performance* Black Type Hard Coat Anodized* Easy Installation and Adjustment* Sold in PairsTech Tips:-* Heavy Duty application are recommended for 110kg+ rider & passenger total weight. Also consider Heavy Duty if most of your riding is 2-UP, stunt riding, or aggres sive riding style.*Before fitting, check the front shock mount stud hasapprox. 57mm of exposed Thread. After fitting there should beapprox. 8mm of thread protruding past the Nyloc lock nut. *Shocks are supplied on the softest setting – Sag or preload must be set prior to test riding the vehicle.*A short, thin 7/8in. open end spanner is best to perform the Sag orpreload adjustment*Apply a liberal amount of CRC or similar penetrating lubricant tothe preload Nut area before attempting any preload adjustment*Turn the 7/8in.AF preload adjusting nut Counter Clockwiseto Increase the spring preload.*When Increasing preload – Do NOT turn the 7/8in.AF preload adjusting nutout any further than the 3rd or final preload reference line*Take care when placing the bike on the jack not to damage the Shockor Rebound adjusting knobsMade by hand in Sturgis, South Dakota, USA !
MFR PART No: 1310-1973

ROLLIES PART No: LEG-1310-1973






Download Product information ( PDF)
