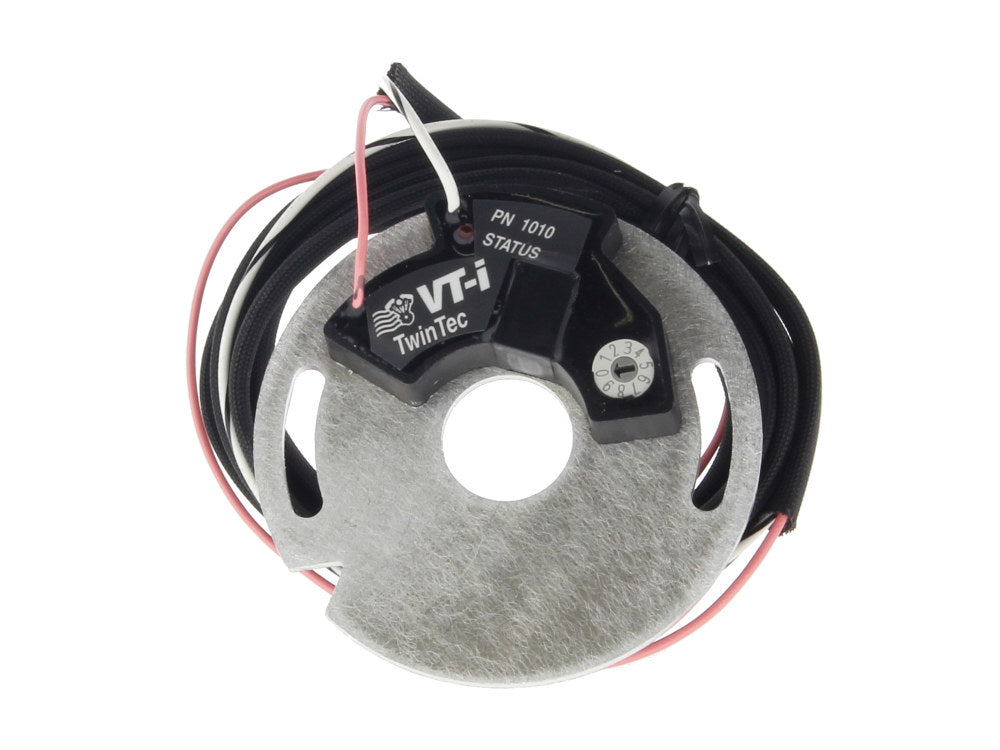

Electronic Ignition Kit. Fits Big Twin 1970-99 & Sportster 1973-98. Replaces point & condensor.

Product Details







* Compatible with most original equipment and aftermarket dual fire ignition coils (3-5 ohms primary resistance) * Ultra reliable dual fire electronic ignition system for all Harley-Davidson® V-twin engines except early magneto type and 1999 and later Twin-Cam® * Includes special trigger rotor for use with traditional mechanical advance mechanism (supplied by customer) * Precise digitally set RPM limiter (200 RPM steps from 5,200 to 7,000 RPM) * Status LED for easy st atic timing * Electronic dwell control for maximum ignition energy at high RPM and reduced current draw at low RPM* Easy installation. Simple two wire hookup to coil * Hall effect sensor detects teeth on special trigger rotor and provides very stable spark timing l * Operates down to below 6 volts for reliable starting under all conditions, including kick start * Fully encapsulated construction using surface mount electronics. Waterproof and highly resistant to vibration and shock* Over-temperature protection. Rated to operate at 125º C (260º F) * This product must ONLY be used in such a way as to ensure the vehicle remains compliant with the relevant emission control requirements.* Responsibility rests with the installer to ensure appropriate test equipment is used to validate the above.
MFR PART No: 1010

ROLLIES PART No: DTT-1010






Download Product information ( PDF)
