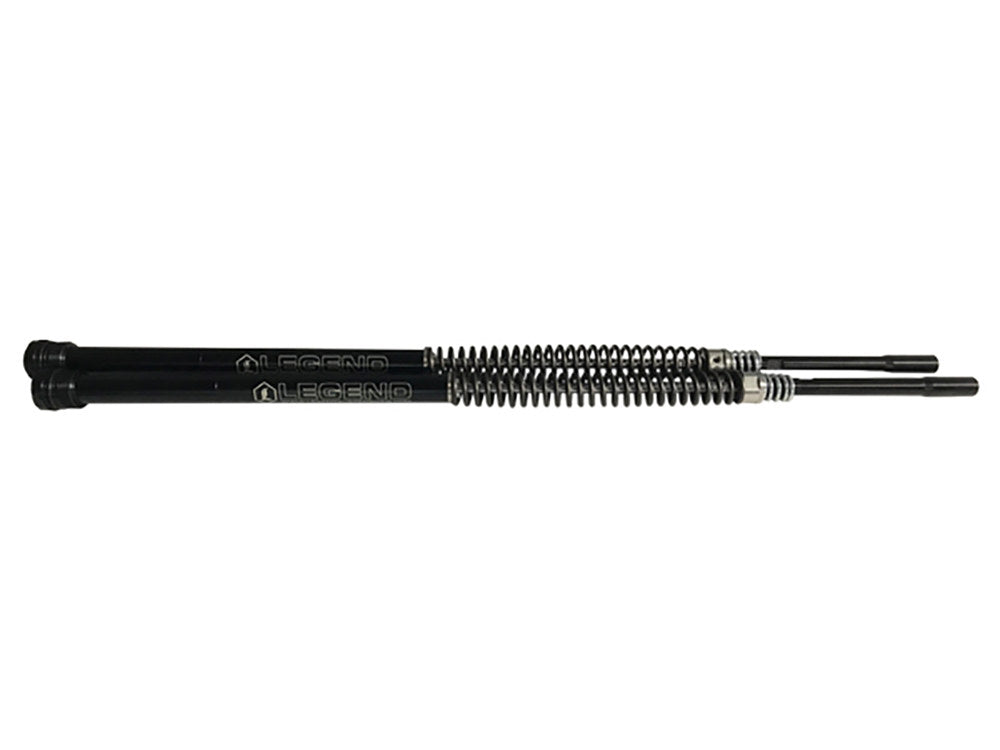

AXEO Front End Suspension. Fits Dyna 1991-2005, Sportster 1987-2006 & FXR 1987-1994. NOTE: Requires +2in. Fork Tubes.

Product Details







NOTE: Requires Fork Tubes 26-1/4? # BAI-C23-0191-2Legend Suspension has once again innovated a new way to outperform any other 39 cartridge kit on the market. There’s never been a front end like this before.* Innovative through shaft design is first of it’s kind in front fork application. (Not like others offering spring drop in or nitrogen)* Easily installs in few simple steps* Includes 2 mono-tube, damper cartridges* Unique through shaft: technology so there’s no pressure at end of stroke* Utilizes a two stage management system controlling Fluid flow and high pressure* Compression and rebound flow rate is managed via high flow damper piston and deflective disc set* Secondary high pressure control system, using precision load rated wave springs, allowing spike over pressure to by-pass, protecting the deflective disc’s precision valve opening limits* Through shaft eliminates the rod pressure in and out issues plus pi ston rod is always in fluid* 2 precision linear bearings support both sides of the rod and piston assembly* Proprietary performance spring rated main spring Machined 303 * Stainless threaded pre-load adjuster* Increased pre-load range allows fine tuning for various riding styles and weights* 5? of travel* Ride quality is smooth and controlled* Improves stability, cornering and traction* Eliminates front-end dive during aggressive braking and maneuvering* Firm feel for high-speed sweeping turns* Eliminates bottoming out on large bumps or potholes* Reduces dragging pegs* Designed for optimum performance with Legend rear suspension system* Includes Maxima Racing Oil in cartridge and quart bottle* Made by hand in Sturgis, SD USA* Maintains stock hydraulic bump stop* Purchase of new fork cups recommended or installer will have to remove from stock forks
MFR PART No: 0414-0547

ROLLIES PART No: LEG-0414-0547
